CODING, RIPPLING, AND CUTTING
GRISOCOD
Small coding appliance with big imapact!
Designed for single- or double-sided coding of tubes with letter/figure codes (serial numbers, filling/expiry dates, etc.) on the fold of metal tubes or on the welded seam of plastic- or laminated tubes. Rippling jaws for the seals are also available. With a built-in cutting device any irregularities of the welded seam of plastic- or laminated tubes are neatly trimmed.
FEATURES
- Embossing system for stamping of the weld seam of plastic tubes or the fold of metallic tubes
- Avaiable in manual or pneumatic version
- Different sets of jaws according your requirement: one- or two-sided coding, rippling or marking/rippling
- Installable cutting device for rectifing of the weld seam of plastic or laminated tubes
- Complete set of marking stamps
- Utilizing of the same multiple tube holder as used with GRISOTUB PS, resp. GRISOTUB MS
- Special construction of jaws is possible, eg Euro boring, special shaping of the weld seam by die cutting etc.
HOW IT WORKS
Two different types of GRISOCOD are available:
GRISOCOD manual

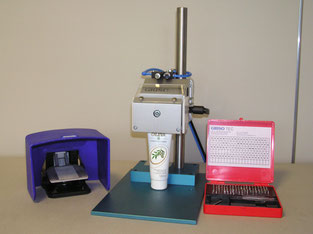

GRISOCOD pneumatic
Once the machine has been fitted with the required parts it is adjusted for height according
to tube length. Filled tubes in single or multiple tube holders – in which they
have already been closed – are placed between the jaws of the machine.
Coding and/or trimming are achieved by depressing a hand lever (GRISOCOD manual)
respectively by actuating of the foot switch (GRISOCOD pneumatic). Correct positioning of
each individual tube in the machine is ensured by a location peg which corresponds
with the holes in the tube holder.
| TECHNICAL DATA | |
|
TYPE OF EQUIPMENT |
Code embossing device with cutting and rippling function |
|
TYPE OF CONTAINER |
Plastic, laminate and/or metal tubes |
|
PRODUCT APPLICATION |
Coding of tube ends, optionnaly rippling and cutting of tube ends |
|
RANGE OF APPLICATION |
Pharmacies, drugstores, R&D laboratories, cosmetics, pharmaceutical, chemical and food industry |
| FEATURES | Handy table-top unit |
|
SPECIAL FEATURES |
Modular system Special design (e.g. Euroboring) upon request |
|
TUBE DIMENSIONS |
Ø 12-60 mm (0,47-2,36 in) L 20-320 mm (0,78-12,59 in) |
| ACCESSORIES |
Multiple tube holder Set of Embossing characters |
|
EMBOSSING CHARACTERS |
max. 12 characters in standard height 1.5 mm max. 9 characters in special height 2.0 mm (upon request) |
|
WORKING WIDTH |
90 mm (3,54 IN) |
| PERFORMANCE | Up to 1'500 tubes p/h |
| DIMENSIONS | W 200 mm (7,87 in) / D 300 mm (11,81 in) / H 420 mm (16,53 in) |
| WEIGHT |
GRISOCOD manual: approx. 8 kg (approx. 17,63 lb) GRISOCOD pneumatic: approx. 11 kg (approx. 24,25 lb) |
|
CONNECTION VALUE |
GRISOCOD manual: - GRISOCOD pneumatic: compressed air net pressure min. 1 bar / max. 8 bar |
|
Errors and omissions excepted |
|
|
Module accessories |
Flat Jaw |
Coding Jaw |
Coding /
Rippling Jaw |
Rippling Jaw 1 mm |
Rippling Jaw 2 mm |
Cutting Device |
|
Description / Item no. |
A.130010 | A.130202 | A.130024 | A.130025 | A.130030 | A.130040 |
| Trimming | K 2x | - | - | - | - | K |
| Coding single-sided | K / M | K / M | - | - | - | - |
| Coding double-sided | - | M 2x | - | - | - | - |
| Coding + Trimming | K | K | - | - | - | K |
| Coding + Trimming + Rippling | - | - | K (Set) | - | - | K |
| Coding + Rippling | - | - | M (Set) | - | - | - |
| Rippling | - | - | - | K (Pair) | M (Pair) | - |
| Rippling + Trimming | - | - | - | K (Pair) | - | K |
| Key: M = Metal tubes / K = Plastic and laminate tubes | ||||||
