SERIEL WELDER FOR HEAT SEALING OF PLASTIC OR LAMINATE TUBES
GRISOTUB PS
Impulse welding system for quick and easy closing of plastic and laminate tubes.

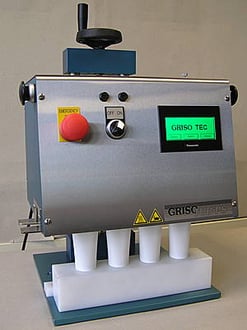

The GRISOTUB PS is an electro-pneumatic impulse welding machine for professional quality heat sealing of plastic or laminate tubes. Depending on tube diameter 2 up to 11 tubes can be perfectly sealed per working cycle.
For coding, rippling and/or cutting the weld seam our GRISOCOD is recommended.
FEATURES
- electro-pneumatic impulse welding machine for sealing of plastic and laminate tubes
- easy setting and saving of welding and cooling time as well as heating temperature and contact pressure
- welds 2 up to 11 tubes per working cycle, depending on the tube diameter
- high performance: 350 - 1'800 tubes per hour, depending on the tube diameter
- multiple tube holder individually manufactured with the use of your tube samples
- ideal for professional welding of plastic and laminate tubes in medium-sized production lot
HOW IT WORKS
The previously filled plastic or laminate tubes are placed in the tube holder. Alternatively, the tubes can already be filled in the tube holder. It is recommended to work with at least two tube holders which is a great help in optimizing the work process. Now the tube holder is pushed sideways between the welding bars of the GRISOTUB PS. The welding process is activated with the two-hand release buttons. After the short welding and cooling time, the tubes are released immediately.
The welding parameters (heating and cooling time, contact pressure, and heating temperature) can be entered and saved easily using the touch panel. Height adjustment of the sealing bars accomodates tube lengths up to 260 mm.
We are happy to carry out tests and trials with your tubes. Simply send us approximately 20 tubes.
| TECHNICAL DATA | |
|
TYPE OF EQUIMENT |
Semi-automatic tube welder |
|
TYPE OF CONTAINER |
Plastic and laminate tubes |
|
PRODUCT APPLICATION |
Heat sealing of plastic and/or laminate tubes (up to 11 tubes per cycle) |
|
RANGE OF APPLICATION |
Pharmacies, drugstores, R&D laboratories, cosmetics, pharmaceutical, chemical and food industry |
| FEATURES | Table-top unit |
|
SPECIAL FEATURE |
Multiple tube holder individually adapted to your tubes |
|
TUBE DIMENSIONS |
L 50-250 mm (1,96-9,84 in) Ø max. 50 mm (1,96 in) with tube holder Ø max. 60 mm (2,36 in) without tube holder |
| ACCESSORIES | Multiple tube holder |
| PERFORMANCE |
Up to 1'800 tubes p/h The sealing cycles are between 15 and 25 seconds, depending on the tube material and wall thickness. |
| DIMENSIONS | W 360 mm (14,17 in) / D 350 mm (13,77 in) / H 550 mm (21,65 in) |
| WEIGHT | approx. 27 kg (approx. 59,52 lb) |
| CONNECTION VALUE |
electrical: 1x230VAC, 50/60 Hz or 1x115 VAC, 50/60 Hz connected power 0.45 kW pneumatic: air consumption per working cycle at 3 bar 0.3 l |
| Errors and omissions excepted | |
