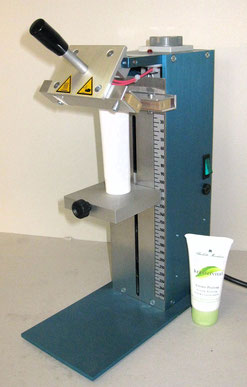

PLASTIC TUBE WELDER
GRISOTUB E
This single tube welding appliance seals plastic and laminated tubes within seconds.
GRISOTUB E is the professional appliance for welding of plastic or laminated tubes. This device is ideal for use in R&D laboratories in the chemical, pharmaceutical, cosmetic, and food industry, as well as for small series production in cosmetic institutes, drugstores and pharmacies.
FEATURES
- blameless welding of plastic and laminated tubes
- easy and secure to operate
- individually adjustable heating time - depending on the tube material
HOW THE WELDER WORKS
Bring the height of the support plate into position corresponding to the length of the tube and set the welding time depending on the tube material and the thickness. Insert the rube, press the
hand lever down and wait for the welding and cooling time to pass. The plastic of laminate tube is now closed in perfect quality.
| TECHNICAL DATA | |
|
TYPE OF EQUIPMENT |
Sealer for single tubes |
| TYPE OF CONTAINER | Plastic and laminate tubes |
| PRODUCT APPLICATION | Secure heat sealing of plastic tubes |
| RANGE OF APPLICATION | Pharmacies, drugstores, R&D laboratories, cosmetics, pharmaceutical, chemical and food industry |
| FEATURES | Handy table-top unit |
| SPECIAL FEATURE | Easy-to-use and robust device |
| TUBE DIMENSIONS | L 25-250 mm (0,98-9,84 in) / Ø 10-60 mm (0,39-2,36 in) |
| ACCESSORIES | - |
| PERFORMANCE | Up to 240 tubes p/h |
| DIMENSIONS | L 120 mm (4,72 in) / D 260 mm (10,23 in) / H 340 mm (13,38 in) |
| WEIGHT | approx. 4.8 kg (approx. 10,58 lb) |
| CONNECTION VALUE |
1x230VAC, 50/60 Hz or 1x115 VAC, 50/60 Hz |
| Errors and omissions excepted | |
