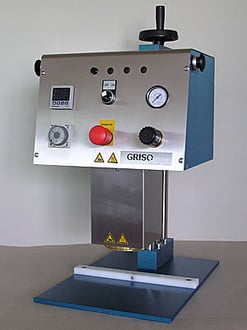

GRISOSEAL is a compact electro-pneumatic heat sealing appliance for laminated pre-cut aluminum foil diaphragms onto plastic or glass containers.
It can be used either in a semi-automatic form or it can be incorporated into a fully automatic filling line.
Sealed foil closures give a hermetic product protection, diffusion barrier as well as a perfect originality protection and an absolute impermeability.
HOW IT WORKS
The aluminum foil diaphragm is placed on the container and both are then pushed under the heat seal head. Pressing the bi-manual release buttons executes the sealing process.
The sealing parameters (temperature, dwell time, contact pressure) recommended by the container and foil supplier can be set precisely and continously on the clearly arranged control panel. The height of the sealing head is adjustable to meet your needs on a multitude of containers. Changing the sealing head for different container sizes is quick and easy.
We are ready to carry out some tests with your material. If you wish to make use of our offer, send us about 20 pieces of your containers and foils.
|TYPE OF EQUIPMENT||Semi-automatic electro-pneumatic heat sealer|
|SEAL-TYPE||Laminated pre-cut aluminum foil diaphragms|
||Sealed foil closures on plastic and/or glass containers|
RANGE OF APPLICATION
||Pharmacies, Drugstores, R&D laboratories, cosmetics, pharmaceutical, chemical and food industry|
||To be used as a stand-alone unit or incorporated into a fully automatic filling line.|
Ø opening max. 100 mm (max. 3,93 in)
H max. 215 mm (max. 8,46 in)
|ACCESSORIES||Slding unit with container insert (customized)|
Temperature 20-200 °C (68-392 °F)
Time 0.5-10 Sek.
||Up to 1'870 N at 6 bar|
|PERFORMANCE||600 up to 800 seals p/h|
|DIMENSIONS||W 370 mm (14,56 in) / D 500 mm (19,65 in) / H max. 650 mm (max. 25,59 in)|
|WEIGHT||approx. 36 kg (approx. 79,36 lb)|
Electrical: 1x230 VAC, 50/60 Hz or 1x115 VAC, 50/60 Hz
Heating power 240 W
Pneumatic: air consumption per working cycle at 3 bar 0.6 l
Errors and omissions excepted
